Product Detail

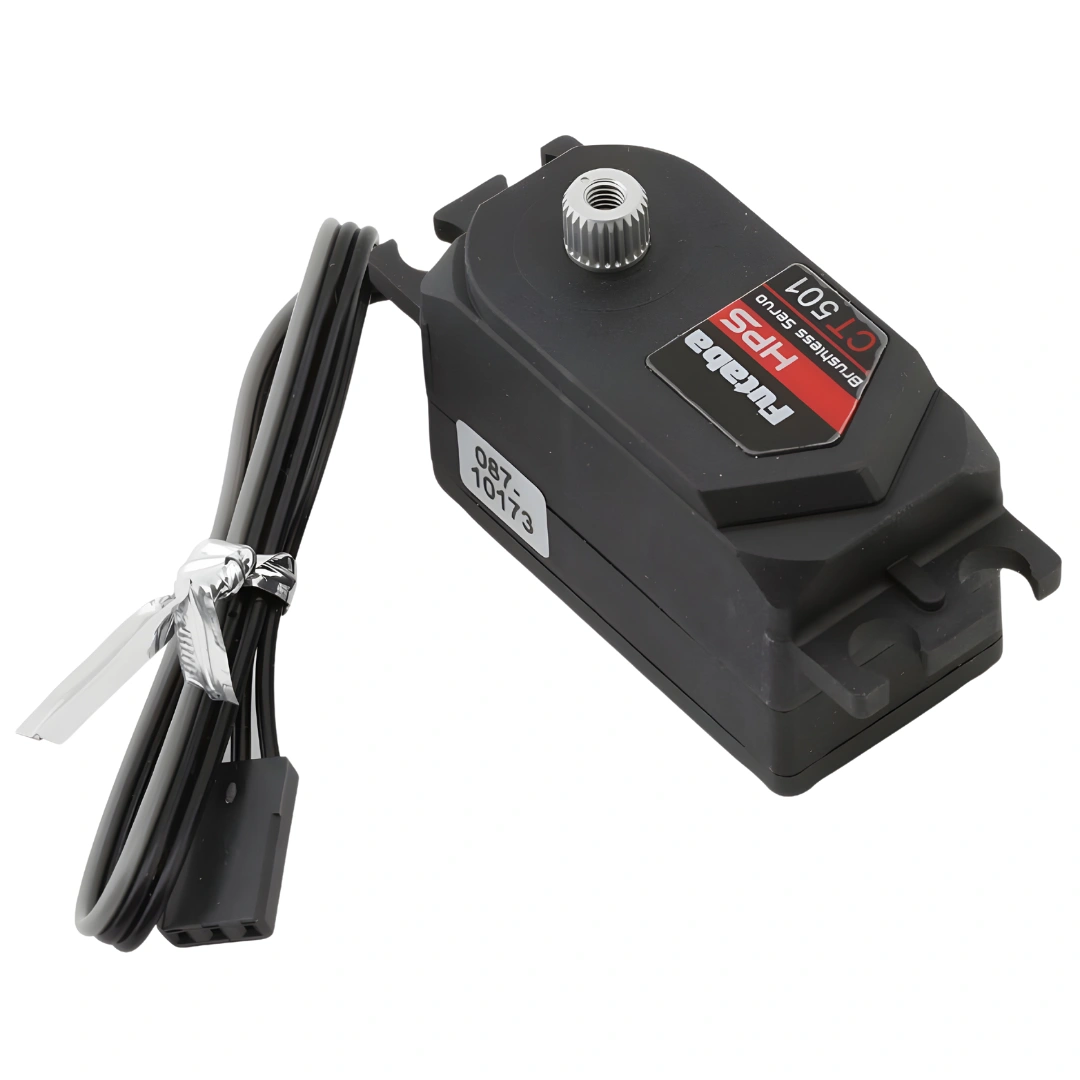

This is the Futaba HPS-CT501 Low Profile Brushless S.Bus2 Metal Gear High Voltage Servo. Designed for 1/10 On-Road and drift applications in need of a high-quality low profile lightweight brushless servo with big servo speed and torque specs! Features a high input voltage capable and all-metal gear design with a durable composite case, this HPS-CT501 is capable of putting out 291.6 oz-in of torque at a speed of 0.06 sec/60° while operating at 7.4 Volts! In addition, the HPS-CT501 is programmable and compatible with S.Bus and S.Bus2 systems! Get this HPS-CT501 servo for your 1/10 scale on-road and drift cars and experience the enhanced performance, speed and durability this servo can offer.

NOTE

• No dry battery or BEC use

• Only for RC Cars smaller than 1/5 scale

Features

• Low Profile design

• Suitable for RC cars drift and 1/10 scale on/off road

• Programmable and compatible with S.Bus and S.Bus2 systems

• Powerful Brushless Motor

• Supports SR mode with T7PX/7PXR and UR mode with T10PX

• High voltage capable

• High quality composite case

Specifications

• Speed:
  @6.0V: 0.07 sec/60°
  @7.4V: 0.06 sec/60°

• Torque:
  @6.0V: 237.5 oz-in (17.1 kg-cm)
  @7.4V: 291.6 oz-in (21 kg-cm)

• Dimensions: 1.59x0.83nx1.06' (40.5x21x26.9mm)

• Weight: 44g

• Motor: Brushless

• Size/Type: Low Profile 1/10 Scale On-Road

• Operating Voltage: 6.0V-7.4V

• Operating Spline: 25T

Includes

• (1) HPS-CT501 Low Profile Brushless S.Bus2 Metal Gear Servo
