Product Detail

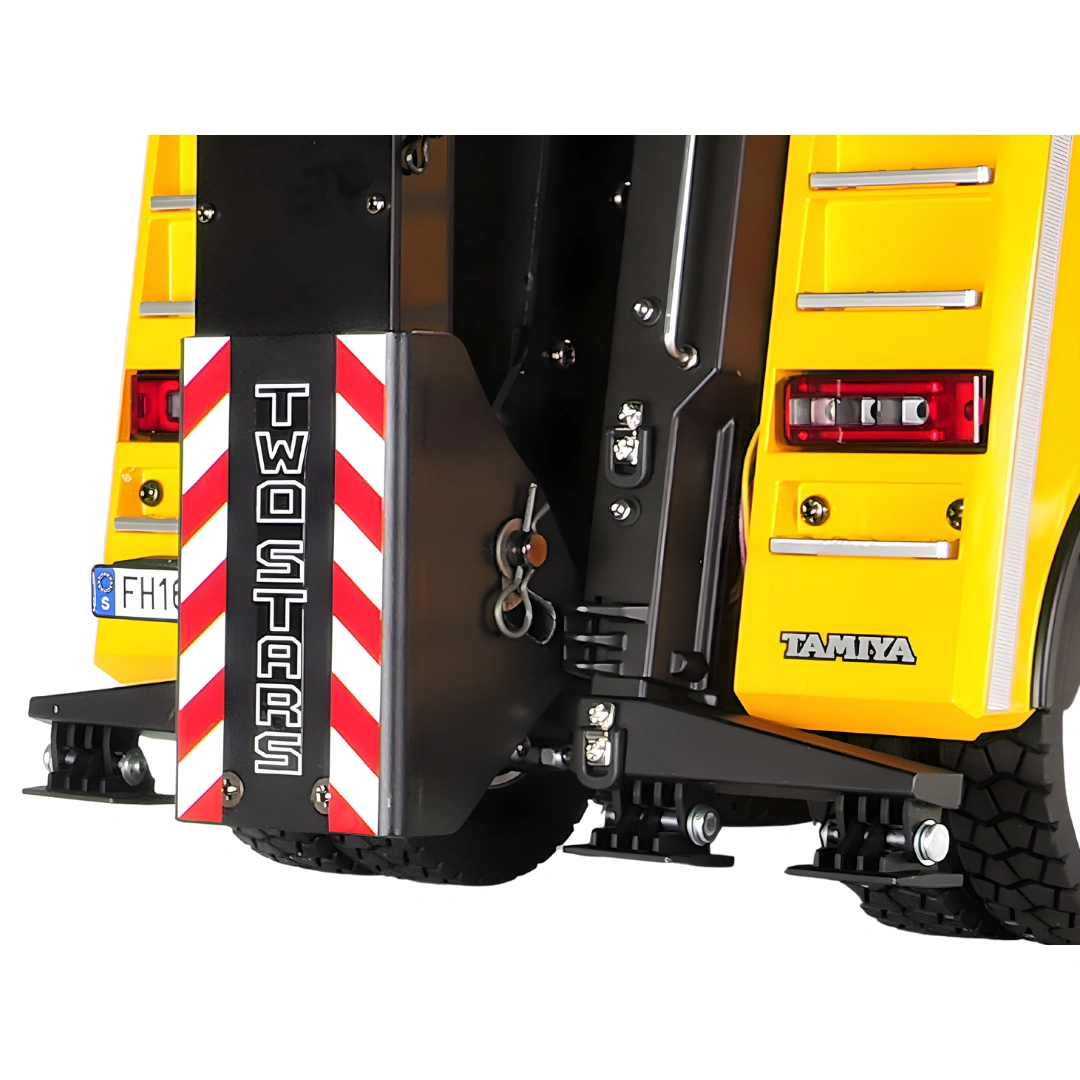

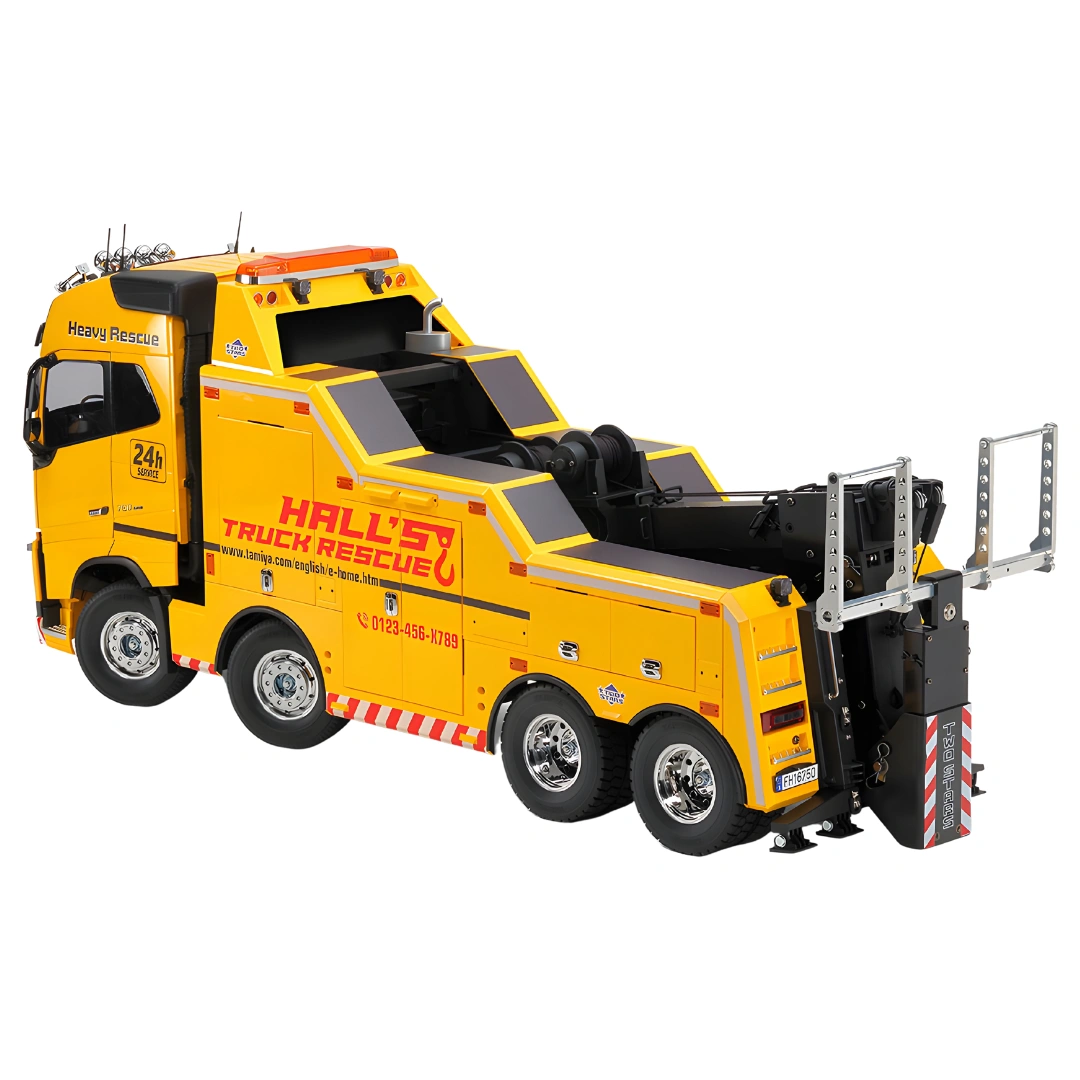

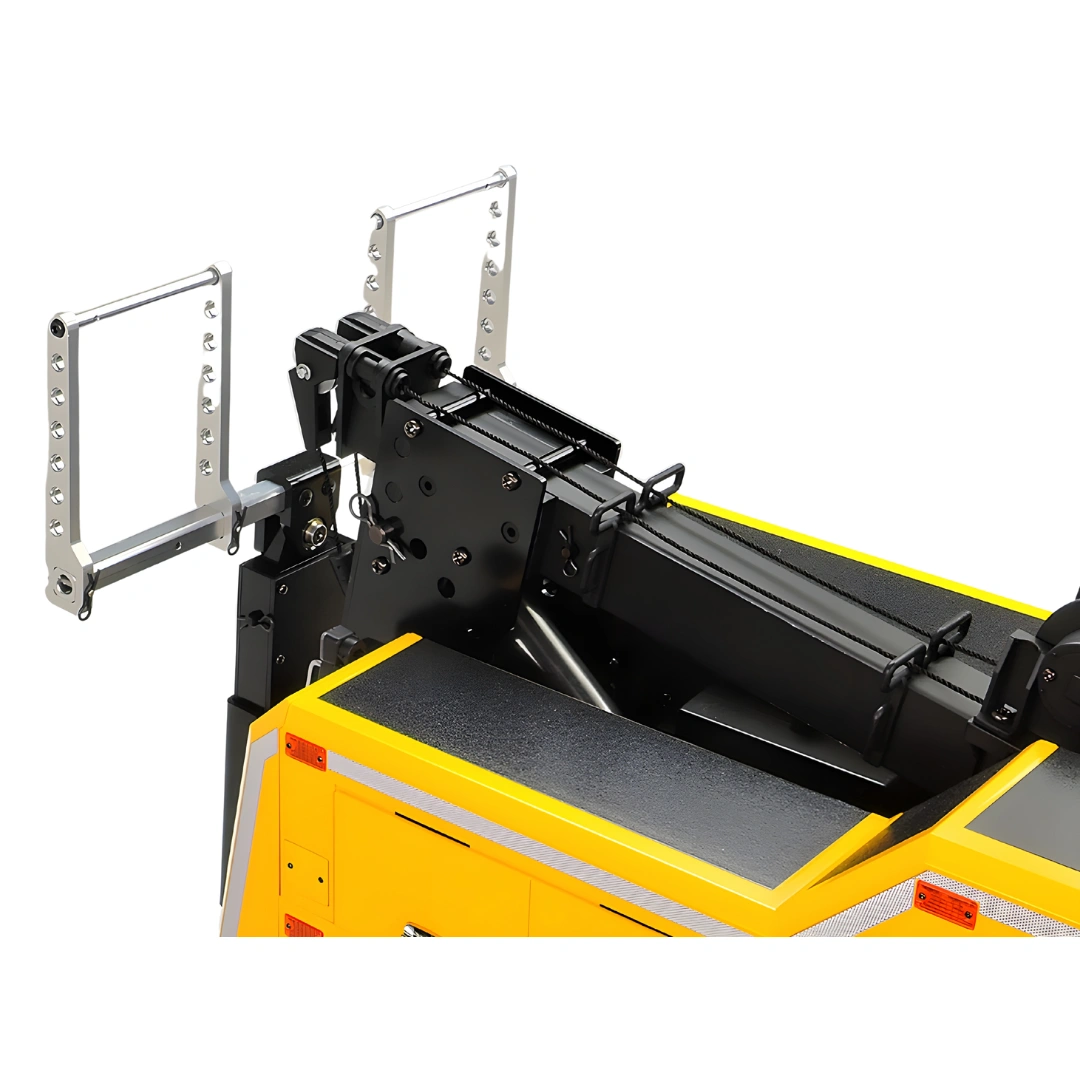

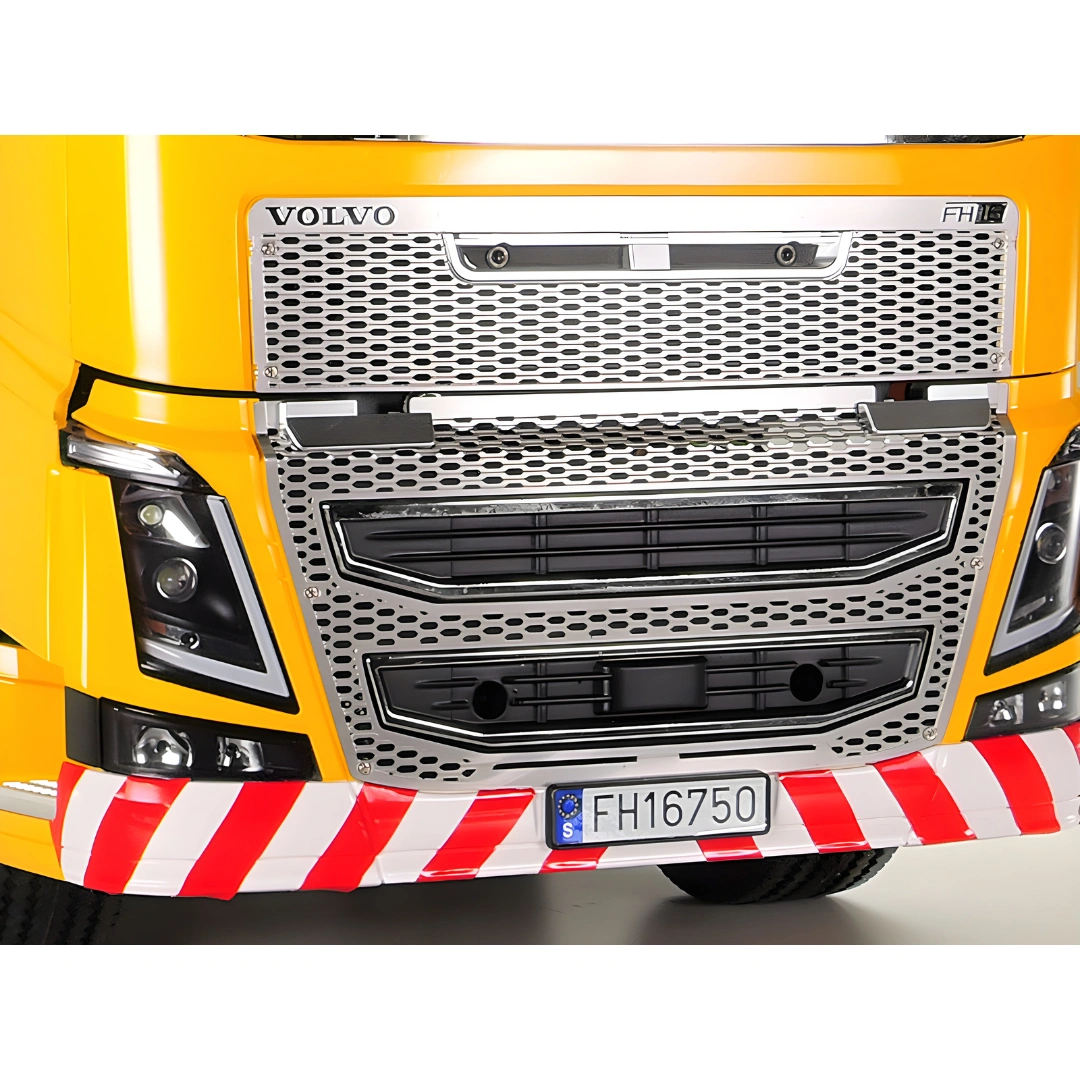

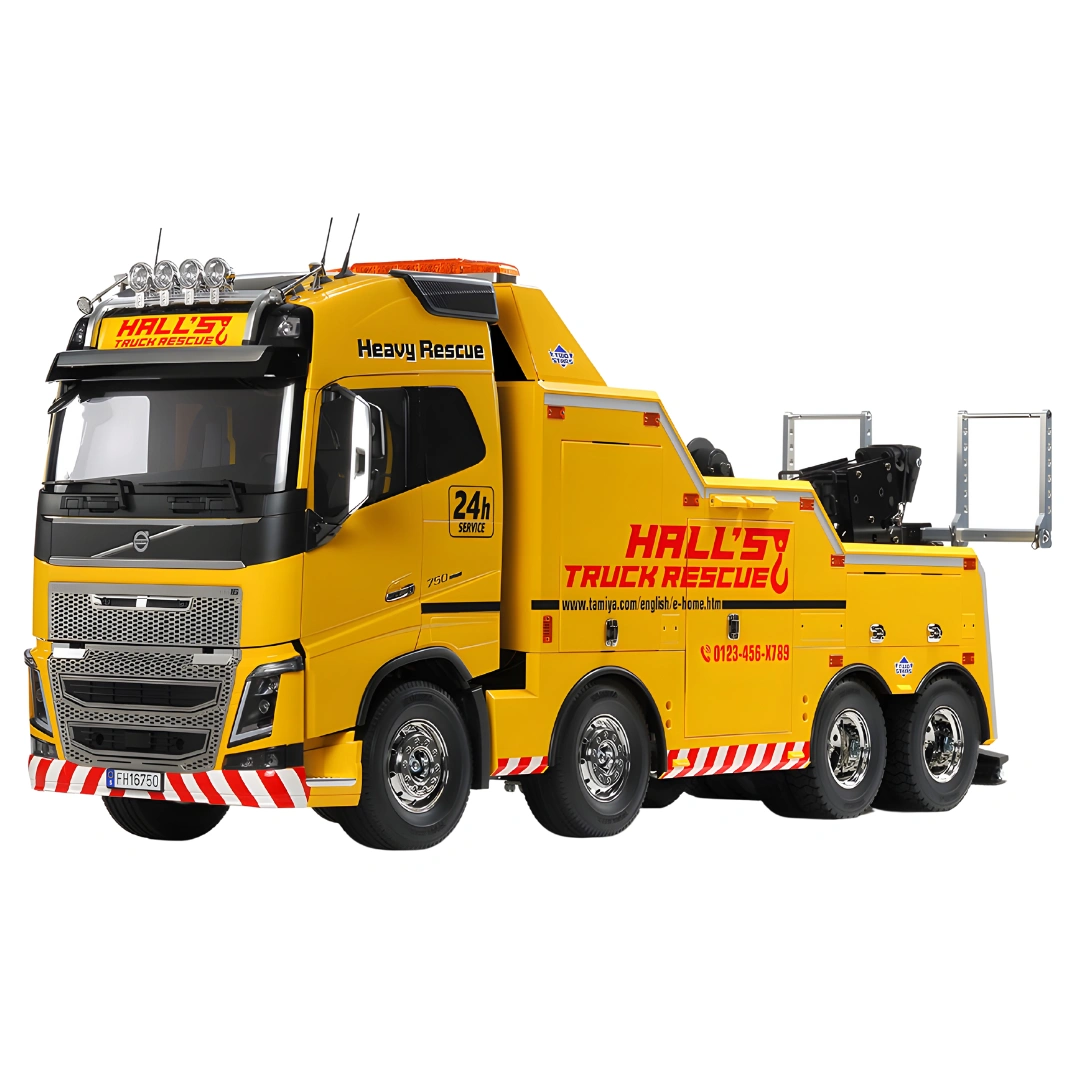

Volvo is a renowned actor in the global commercial vehicle market, with one of their flagship brands being the FH Series that underwent a full model change in 2012. This RC model assembly kit recreates the 750hp engine FH16 Globetrotter 750 8x4 tow truck from that range. The model has a realistic cab and body, the former featuring a photo-etched front grille and interior details, the latter opening doors. Its fascinating towing mechanism uses plenty of metal parts and winch boom, under lift and outriggers are movable manually. The front mounted TR Mighty Tuned motor (35T) provides ample power to the two rear axles, via a three-speed transmission. Gear changes are also possible via transmitter controls, and the model can tow subjects such as 1/14 scale RC tractor trucks.

Optional Extras for Ultra Realism

• Item 56553 Electric Actuator Set for 1/14 Scale RC Tow Truck

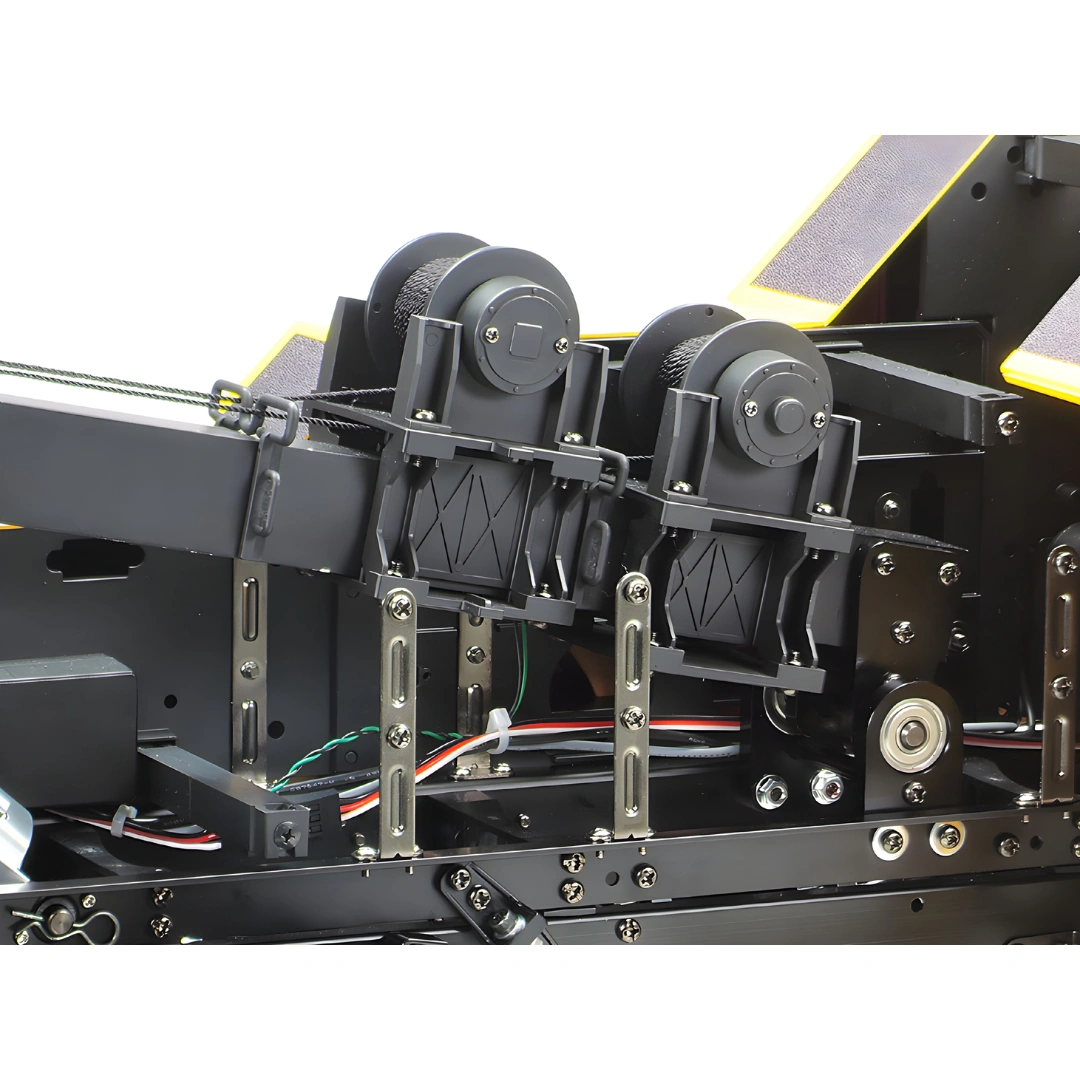

  This separately sold set allows raising of the winch boom and underlift via RC controls. It uses a precision geared motor and spindle cylinder, plus the ACU-02 unit, and also features a toggle switch for manual control.
• Item 56523 Tractor Truck Multi-Function Control Unit MFC-03
  Tamiya Multi-Function Control Units (sold separately) offer light, sound, and vibration operation to accompany your RC truck experience. Engine sounds have been digitally recorded from actual trucks, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

Specifications

• Length: 732mm
• Width: 199mm
• Height: 309mm
• Weight (with RC equipment and battery pack): Approx. 5.9kg
• Wheelbase: 155 + 245 + 103mm
• Tread: 155mm (Front), 138mm (Rear, Double Tire)

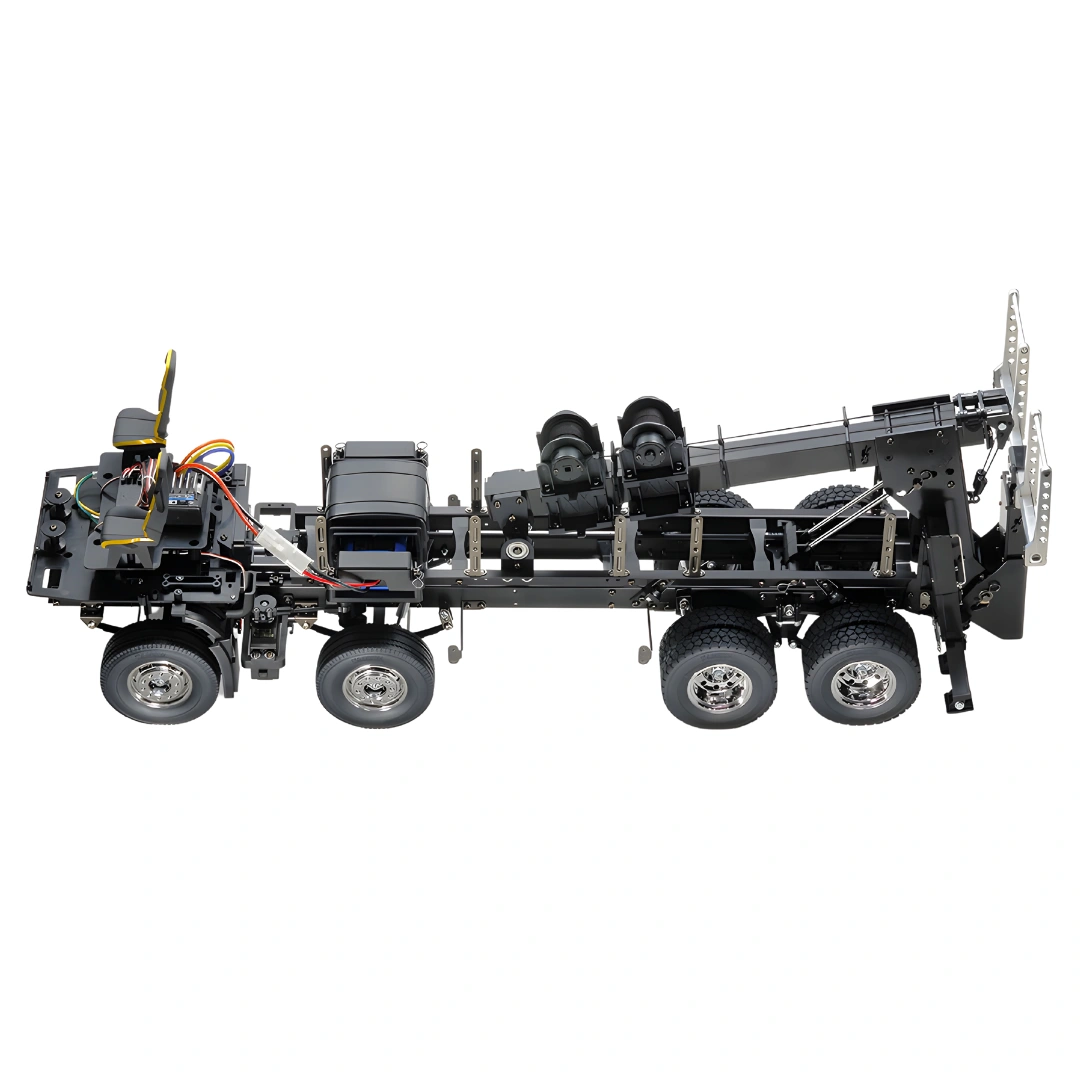

• Chassis: Aluminum & Polycarbonate Resin Ladder Frame
• Suspension: Front/Rear Leaf Springs
• Caster Angle: 0° (Front & Rear)
• Camber Angle: 0° (Front & Rear)
• Toe Angle: 0° (Front & Rear)
• Dampers: Aluminum Dummy Dampers
• Drivetrain: Rear Double Axle Drive
• Transmission: 3-gear transmission (shifts operated via transmitter)
• Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
• Diff. Gear: 3-bevel differentials
• Motor: TR Mighty-Tuned (35T)
• Tire Width/Diameter: 30mm/85mm (Front), 22mm/84mm (Rear)

Requires

• 4 Channel RC System with slide trim levers and self-neutral sticks
• 2pcs Servos
• ESC or Multi-Function Control (MFC) Unit
• R6/AA/UM3 batteries for transmitter
• Battery Pack & Charger
